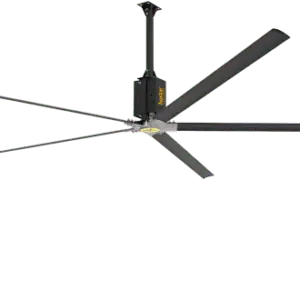

Gearless 12 Feet HVLS Fans
AUSTAR ASGL series Fan are Gearless Type HVLS Fans driven by latest technology Permanent Magnet Synchronous Motor, with five Aero Blades and die casted Blade mounting clamps.
ASGL Series Fans have Noise level advantage and efficiency advantages against AS series Fans.
Are controlled through Variable Frequency Drive for Reverse / Forward and speed adjustment features.
Complies to international safety standards.
Available in Standard Matt Black color and customized color options.
|Doc No. AS/TS/08 Rev.03||Technical Data Sheet|
|3.||Fan Size||12ft Dia|
|4.||No. of Blades||5 No.s|
|5.||Air Volume||135000 CFM|
|6.||Motor Rating||0.35 KW|
|7.||Motor Torque||80 Nm|
|8.||Speed||100 rpm Maximum ( Variable from 0 to 100 )|
|9.||Noise||< 40 db|
|10.||Input Power||Single Phase 50Hz|
|12.||Construction||Frame Structure||M.S. (Powder Coated)|
|Hanging Structure||M.S. (Powder Coated)|
|Fasteners||High Tensile 10.9 Grade HEX Bolts (Unbrako / TVS|
|13.||Blades||Design||Cambered Aerofoil Design|
|M.O.C||Aluminum 6063 (Matte Silver Anodized)|
|No. of Ribs||3 Ribs|
|14.||Drive||Type||Direct Driven PMSM Type|
|15.||Control Penal||Mounting||Wall Mounting 4 – 5 ft from Floor Level|
|VFD Make||‘AUSTAR’ Make with 5 Years Warranty|
|Enclosure||IP 55, Power Coated Steel cabinet|
|16.||Safety||Certification||Compliance to CE requirements|
|Bolted Joints||All Nuts are self locking type Nylock Nuts which eliminates chances of loosening.|
As additional Safety All Bolted joints are wrapped with SS wire Rope.
