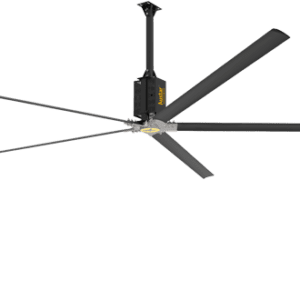

16 Feet HVLS Fans
AUSTAR AS series Fan are Geared Type HVLS Fans driven by German make Geared Motors, with five Aero Blades and Single piece die casted Hub.
Are controlled through Variable Frequency Drive for Reverse / Forward and speed adjustment features.
Complies to international safety standards.
Available in Standard Matt Black color and customized color options.
|Doc No. AS/TS/04 Rev.01||Technical Data Sheet|
|3.||Fan Size||16ft Dia|
|4.||No. of Blades||5 No.s|
|5.||Air Volume||185000 CFM|
|6.||Motor Rating||1.1 KW|
|7.||Speed||70 rpm Maximum ( Variable from 0 to 50 )|
|8.||Noise||60 – 65 db|
|9.||Input Power||Single Phase / Three Phase – 50Hz|
|11.||Construction||Frame Structure||M.S. ( Powder Coated )|
|Hanging Structure||M.S. ( Powder Coated )|
|Impeller ( Hub )||Single Piece Aluminum Die Casted|
|Fasteners||High Tensile 10.9 Grade HEX Bolts (Unbrako / TVS make)|
|12.||Blades||Design||Cambered Aerofoil Design|
|M.O.C.||Aluminum 6063 ( Powder Coated )|
|No. of Ribs||2 Ribs|
|13.||Electric Geared Motor||Make||NORD ( German Make )|
|Efficiency Class||Class F|
|14.||Control Penal||Mounting||Wall Mounting 4 – 5 ft from Floor Level|
|VFD Make||‘Danfoss/Fuji’ Make|
|Enclosure||IP 55, Power Coated Steel cabinet|
|15.||Safety||Certification||Compliance certificate to CE requirements|
|Bolted Joints||All Nuts are self locking type Nylock Nuts which eliminates chances of loosening. |
As additional Safety All Bolted joints are wrapped with SS wire Rope.
|Motor – Hub Assembly||It is coupled through self locking type Split Couplings. |
As an additional safety Antifall S Bends are provided to prevent dropping of Hub in event of coupling failure.
|16.||Warranty||3 Years f or Hub, Blade, & Structure. |
1 Year for Geared Motor & Controller.
